Product Description

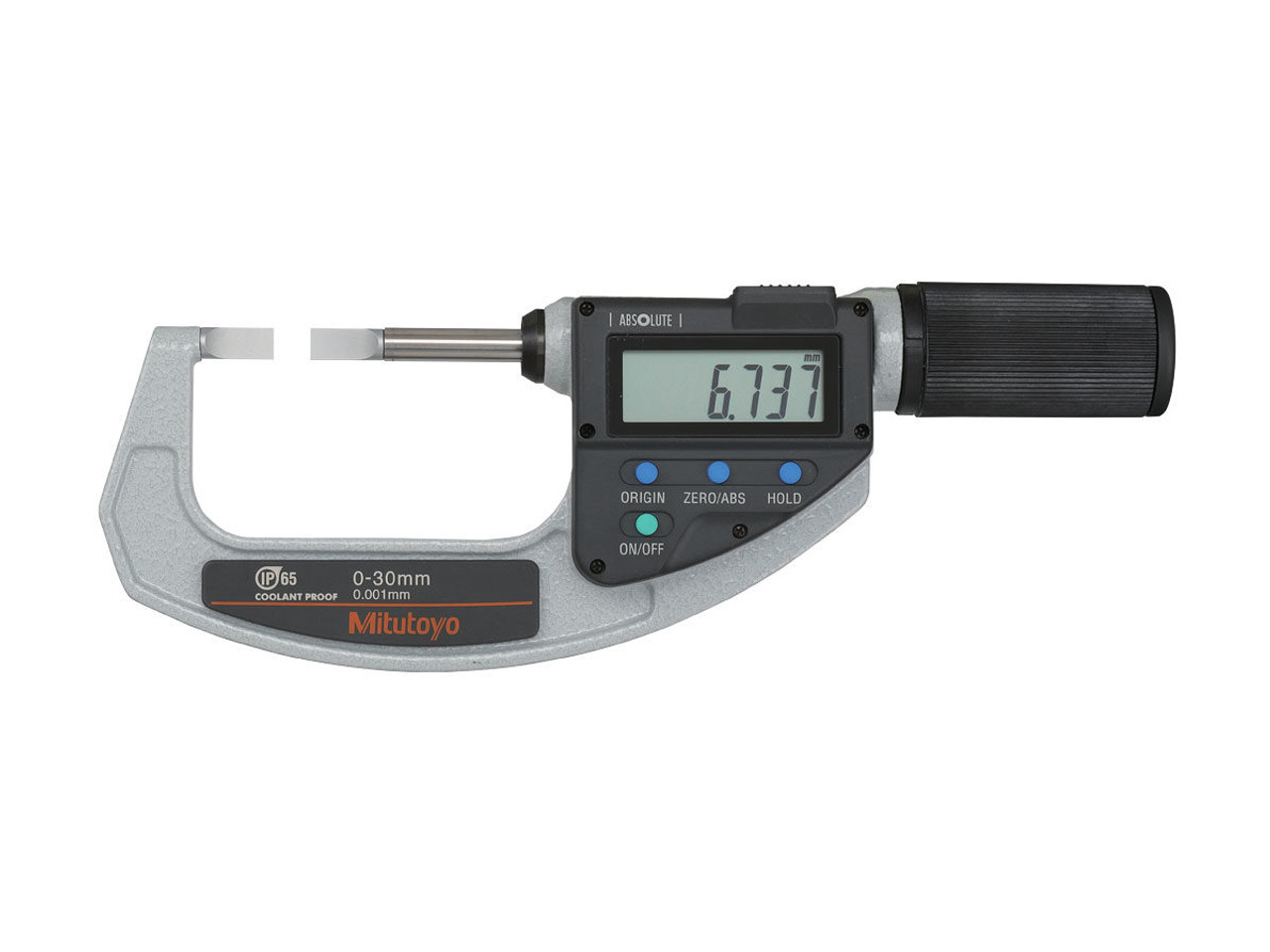

Mitutoyo 422-421-20 Quickmike Blade Micrometer with Output; 0-1.2" Range
With SPC data output option
The Mitutoyo 422-421-20 Quickmike digital blade micrometer gage has a blade anvil and spindle for measuring challenging items such as shaft and keyway groove sizes. With a faster spindle feed, the non-rotating spindle decreases torsion on softer parts being measured and prevents workpiece deformation and wear. For exact, repeatable measurements, a ratchet-stop mechanism applies uniform pressure to a workpiece. The results of the measurements are displayed on an easy-to-read LCD screen. Replaces 422-421.
Details:
-
IP65 Rated, IP54 protection resists debris, dust and water
-
Long battery life (5 years under normal use)
-
Non-Rotating Spindle
-
Speedy spindle feed of 10mm / .4” per thimble rotation
-
BLM-1.2"QMX
-
Resolution: .00005"
-
SPC data output
SPC Data Collection Options:
- To connect this Mitutoyo 422-421-20 Quickmike blade digital micrometer to our GageMux® or other devices that recognize the Mitutoyo Digimatic format, click these links to see our 250-521 or 250-522 Mitutoyo Digimatic output SPC gage cable.
- Click the following link to see our 600-522-KB-USB SmartCable to send data directly to Excel or other spreadsheet programs from this Mitutoyo gage.
- This Mitutoyo gage can be used in the Mitutoyo U-Wave wireless system – click this link for the correct wireless gage cable. See our “Wireless Gage Interfaces for U-Wave” tab for a complete wireless set-up.
Contact us today!
Advanced Systems and Designs can offer all ranges and types of Mitutoyo IP65 digital micrometers from Mitutoyo stock. Contact us for more information.
