Mitutoyo Series TM-505B Toolmaker Microscope
Replaces Discontinued 176-811A

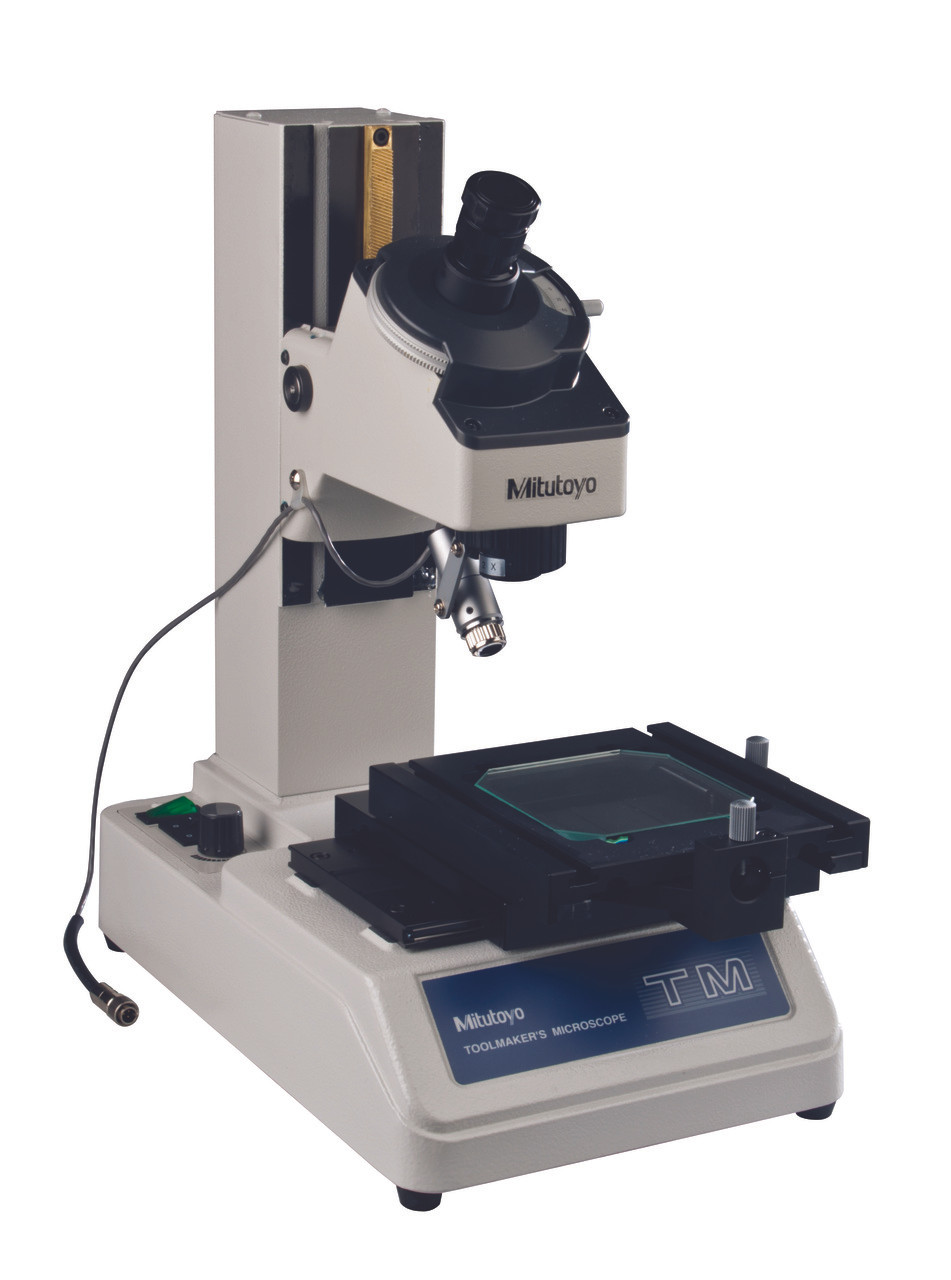

You are reviewing the Mitutoyo 176-818A 505 Series Microscope. This microscope is suited for measuring dimensions and angles of machined metals but can also be used to check the shape of screws and gears by attaching an optional reticle. Compact body allows for use in areas with limited space.
Details:
-
Light Source: Tungsten Bulb 24V-2W)
-
Observation image: Erect image
-
Optical tube: Monocular (diopter adjustable) Depression angle: 30 degree Reticle: 90 degree broken cross hair
-
Angle reading range: 360 degrees
-
Eyepiece: 15X, View field diameter 13mm, optional 10X, 20X
-
Objective: 2X Working distance 67mm, optional 5X, 10X
-
Eff table area: 3.78 x 3.78 inch
-
XY Stage Travel: 2 x 2 inch
-
Table Top Size: 6 x 6 inch
-
Maximum Work-piece Height: 4.5 inch
-
Maximum Work-piece Weight: 11 lbs.
Advanced Systems and Designs -ASDQMS can provide all ranges and types of Mitutoyo Precision Gages from stock. Contact us for more information.
