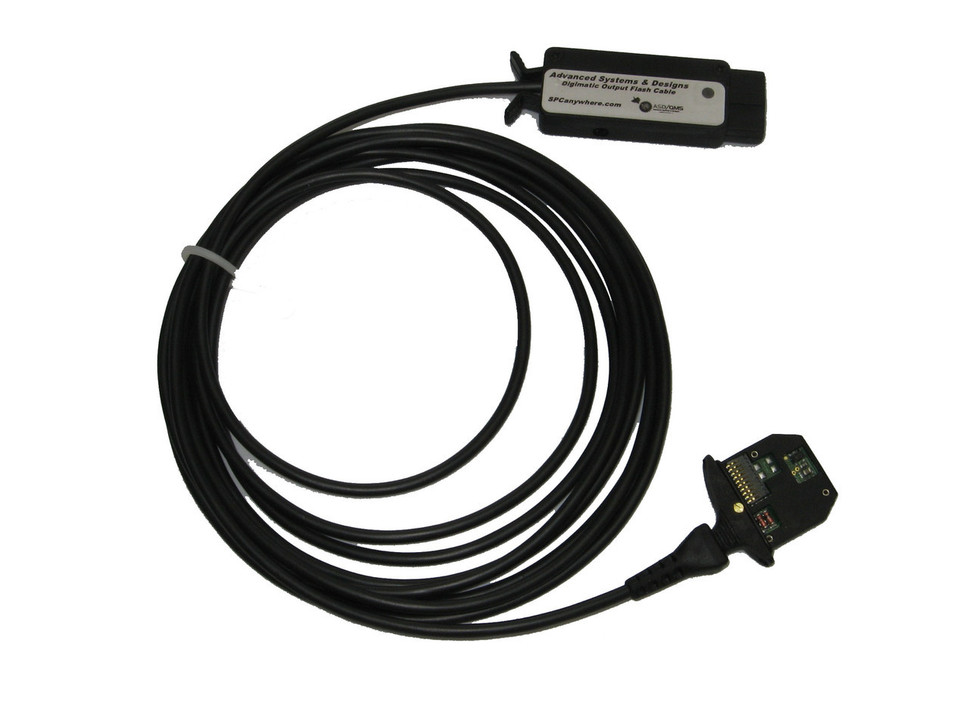

The Advanced Systems & Designs FlashCable® gage interface is engineered to change output on the MarCal 31 EW, 800 EWr, MahrTest 800 EWL or Fowler Sylvac QuadraTest MultiMode Electronic Test Indicator (IP65, IP67, Mini) to a Digimatic format by using the optic coupling signal connector. The Digimatic interface can be connected to our ASDQMS GageMux® or similar devices that recognize Mitutoyo Digimatic signals.

The ASDQMS FlashCable® gage interface does not obtain any power from the gage. The LED on the FlashCable® will turn GREEN when properly connected to a Digimatic device. The LED quickly flashes RED when a data request is triggered. When connected to the GageMux® pin 9 on the input port provides the power to the FlashCable®. If you are using Digimatic devices other than our ASDQMS GageMux®, make sure pin 9 provides 5V power to the FlashCable®.

The data transfer can be triggered by a data send button on the gage, a footswitch connected to the GageMux® gage interface or similar Digimatic device, a footswitch connected to the FlashCable® gage interface or software commands from a peripheral device to the GageMux®.
